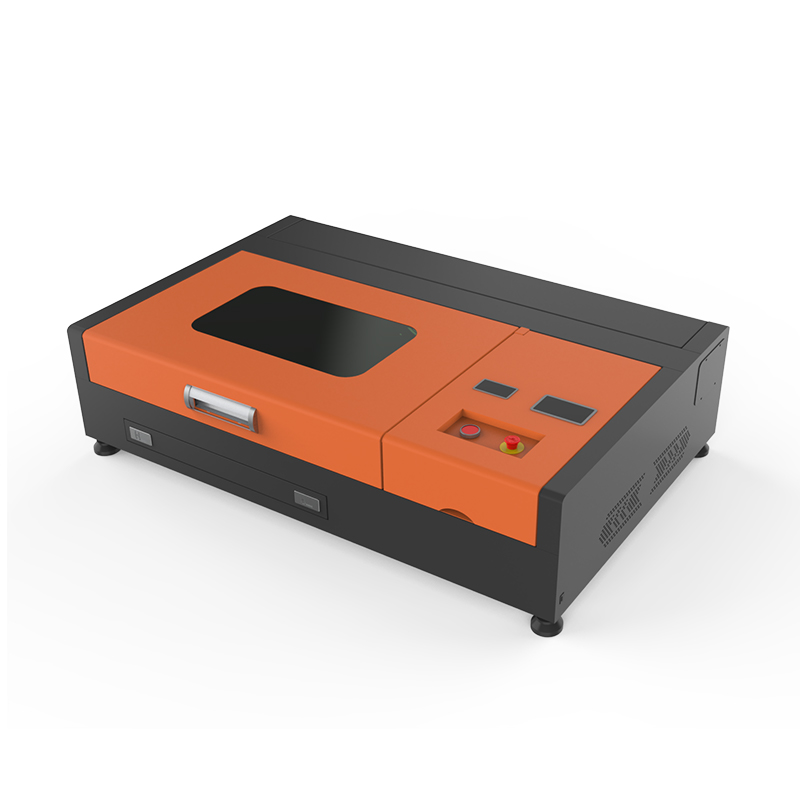

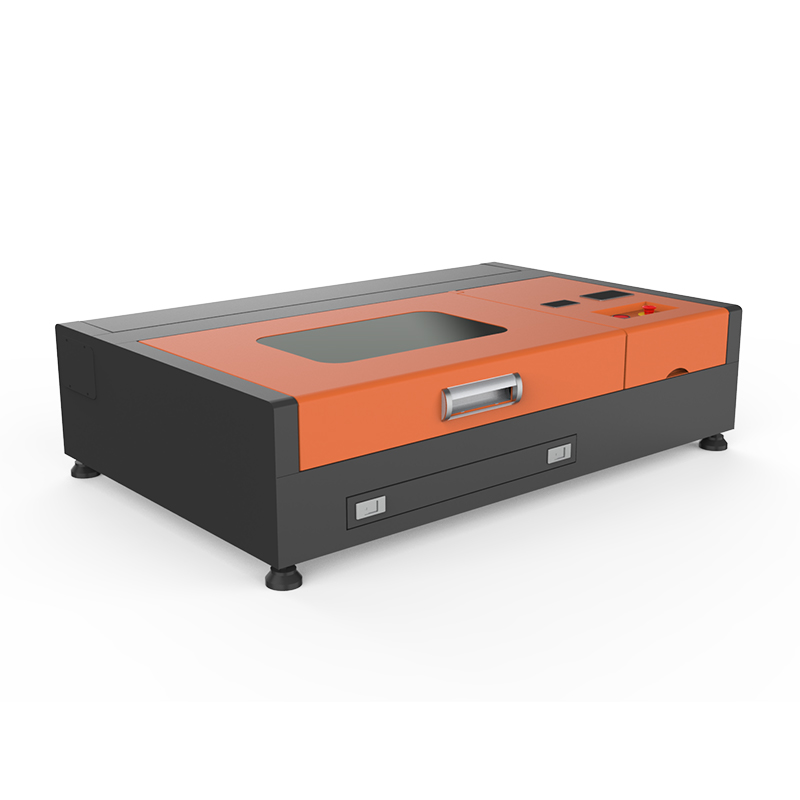

40W CO2 Laser Engraving And Cutting Machine

Low cost, can completely replace the cutting and seal edge workers, the whole process, only one person operation；Automatic feeding, automatic complementing, automatic cutting, automatic sealing；Automatic typesetting, cutting accuracy of 0.2mm, fabric utilization rate of 98% or more；US automatic camera layout system, after the film can be reused；Single-layer cutting and multi-layer cutting for optional, customized shaped, only click the keyboard is ok, Perfect after-sales service system, can provide overseas international service.

Contact Now E-Mail Telephone WhatsApp

Product Details

CO₂ laser engraving and cutting machine is a device that utilizes CO₂ laser technology.

CO₂laser engraving and cutting machine mainly consists of a laser generator, an optical path system, a worktable, a cutting head, and a cooling system. Among these, the laser generator is the core component responsible for producing the laser beam; the optical path system transmits the laser beam to the cutting head; the worktable supports the material and can move automatically or manually to achieve various cutting shapes; the cutting head focuses the laser beam onto the material surface for cutting; and the cooling system cools the laser generator to ensure its normal operation.

The high focusing accuracy of the laser beam enables precise engraving and cutting.

The fast scanning speed of the laser beam significantly improves processing efficiency.

The laser beam has high energy conversion efficiency, resulting in minimal material loss.

The equipment is easy to maintain and has low operating costs.

The parameters such as the intensity, frequency, and scanning speed of the laser beam can be adjusted as needed to accommodate cutting of materials of different thicknesses and types.

CO₂ laser engraving and cutting machine is widely used in industries, scientific research, medical fields, advertising, apparel, and other sectors.

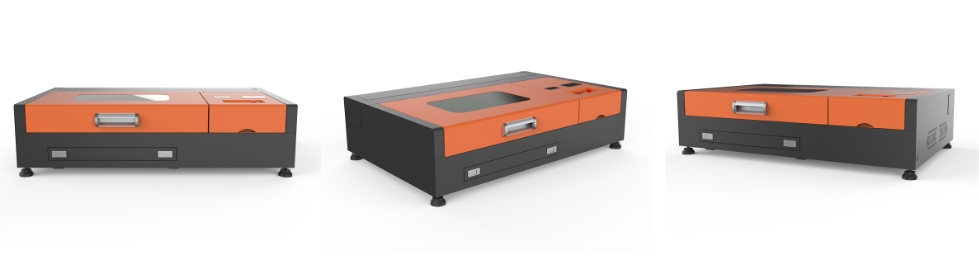

K40 CO2 Laser Engraving And Cutting Machine

Model	Format	Power
K40	300*200mm	40W
K350	500*300mm	50W
K460	600*400mm	60W

Machine parameters

Laser type	Laser glass tube
Laser power	40W/50W/60W
Laser tube cooling method	Water cooling
Control system	Support lightburn software
Motor and Drive	Stepper motor and driver
Maximum carving speed	24000mm/min (Recommended: 100-15300mm/min)
Maximum cutting speed	18000mm/min(Recommended: 1-3000mm/min)
Positioning accuracy	≤±0.01mm
Minimum molded characters	Chinese characters 33mm, English 11mm
Working voltage	220V；50HZ/60HZ(Single-phase)
Supports image and text format	Plt、dst、dxf、bmp、dwg、AI、las、support AutoCAD、CoreDraw

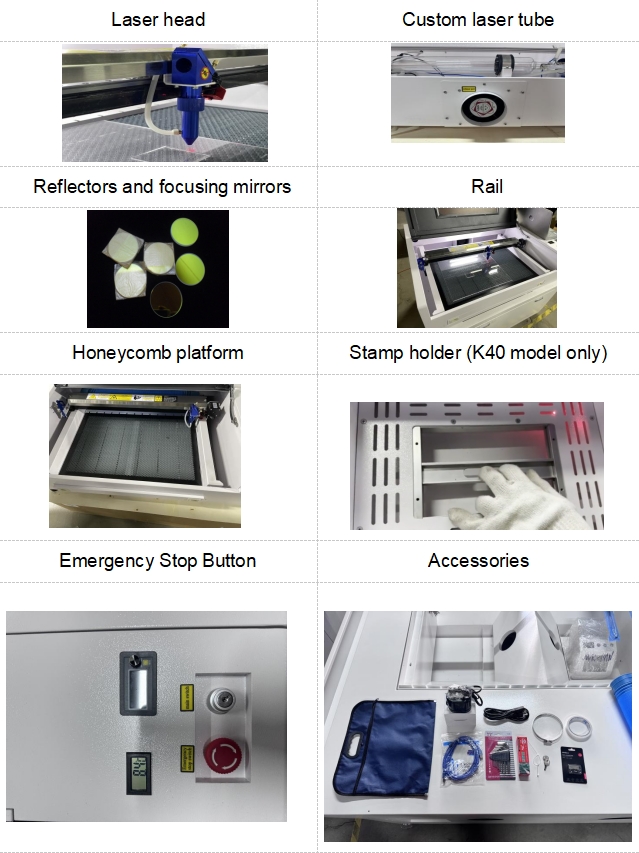

Machine configuration

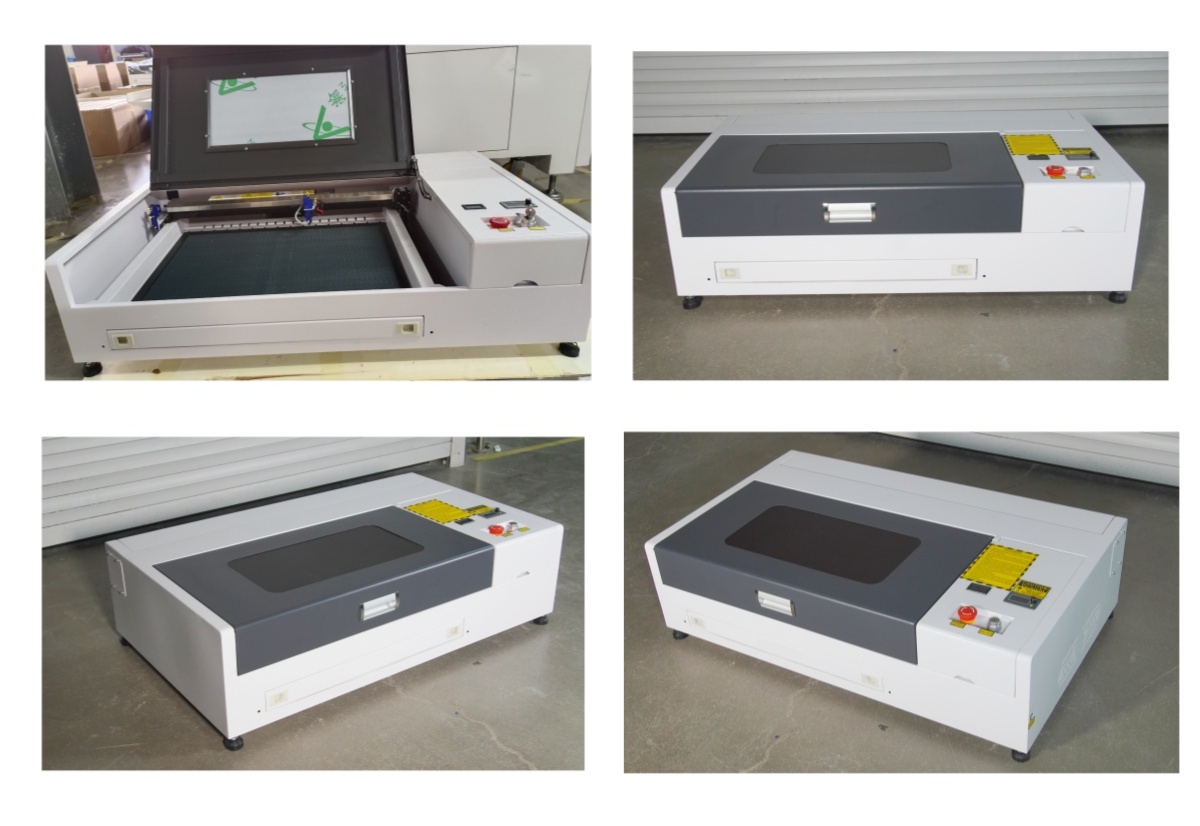

Machine real shot photo

Machine installation and operation training

1. Our company will prepare the machine manual, circuit diagram and pre-installation documents and send them to the customer with the machine.

2. Our after-sales training will mainly be conducted online, with free online remote guidance on how to install and operate the machine. Our company has enough experience and skills to make customers satisfied with the quality of service. Before receiving the machine, customers can prepare the required tools according to the "Pre-Installation Preparation Instructions" provided by our company. After receiving the machine, you can make an appointment with our company for training at the appropriate time. Our 50-member after-sales service team operates around the clock in shifts and will create a training plan based on your appointment. The entire online training process is free and will continue with follow-up support until the customer has no further questions regarding machine operation.

3. Our company can also send engineers to the customer's factory to provide on-site guidance based.
